Center Console Plate for a C3 Corvette

Project Info

  • Created By Michael Urquhart
  • Client Petris Enterprises
  • Date 1/12/2021
  • Category Design

Project Description

A custom center console plate for a C3 Corvette. The plate was designed in Autodesk Fusion 360 and cut out using a water jet from carbon fiber. Shown along with the compartment door panel, custom compartment, and custom switch bracket for door locks and windows.

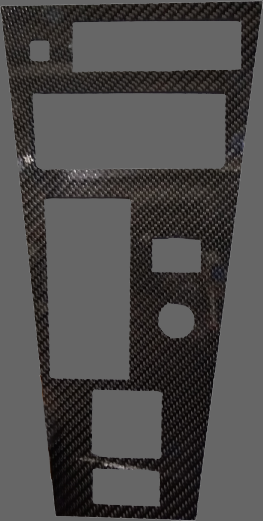

Image of a custom center console plate for a Chevrolet Corvette.
Carbon fiber Chevrolet C3 Corvette center console plate.

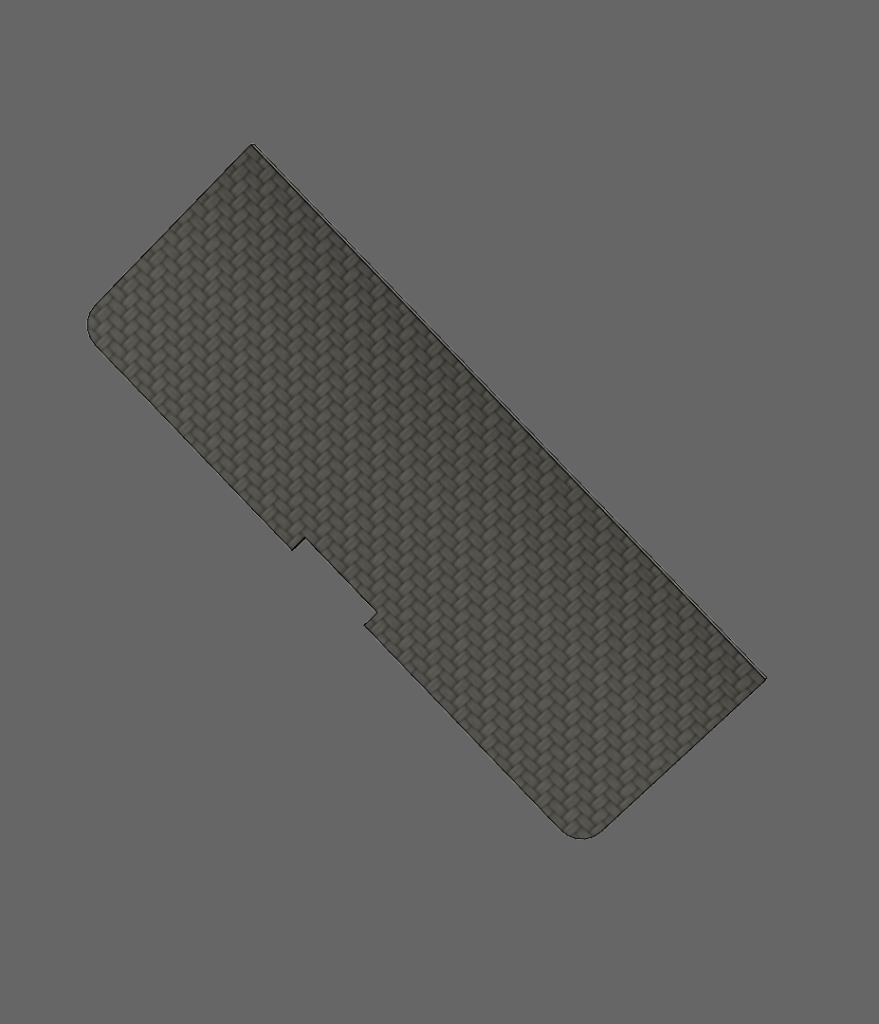

Rendered image of the lid for the custom center console plate.
3D render of center console plate door.

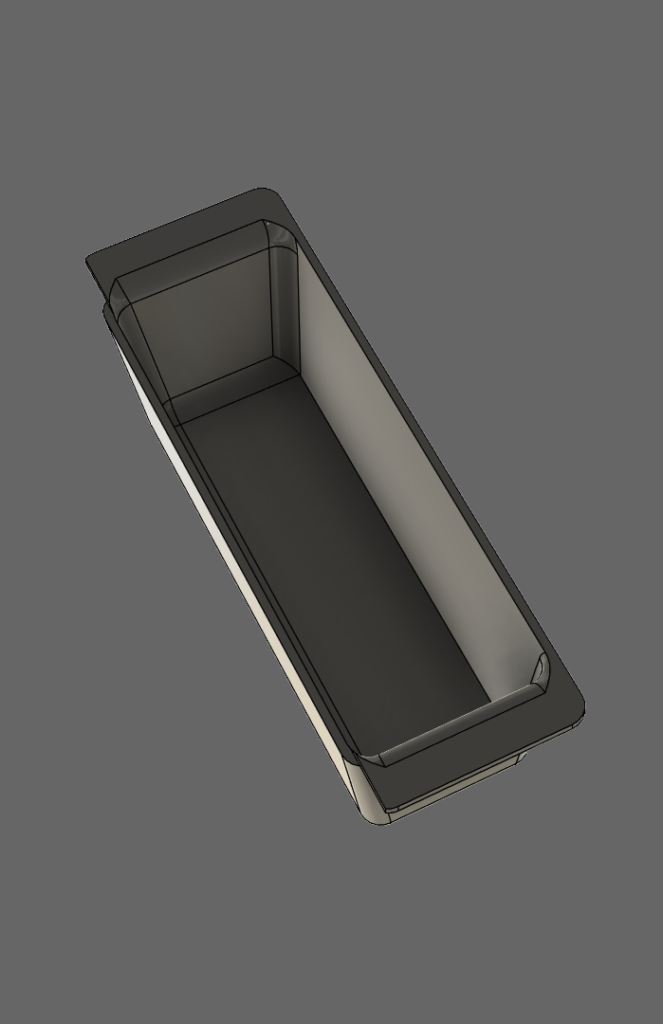

Rendered image of a custom pocket for the center console plate.
3D render of center console compartment.

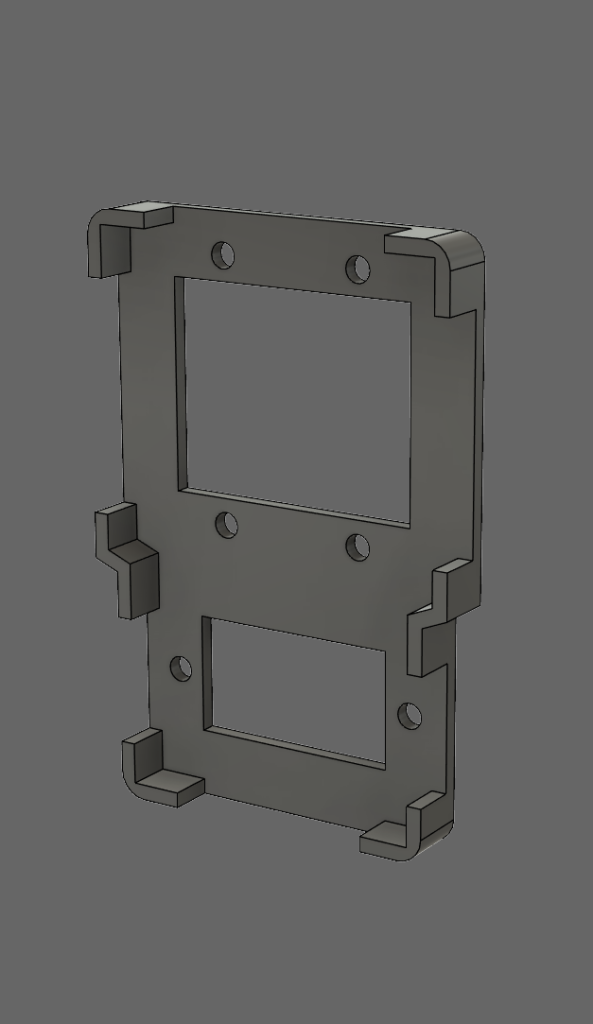

Rendered image of a custom switch holder for the center console plate.
3D render of center console door lock and window switch bracket.
Back Image of a custom center console plate for a Chevrolet Corvette.
Center console door lock and window switches.
